LTT24 - Volt and current


The standard connection with the inputs for volt and current of our data aquisition system LTT24.

Can be used to measure the common types of measurement: volts AC/DC, current AC/DC, frequency, current transformer, as well as current loop signals from 0 mA to 20 mA.

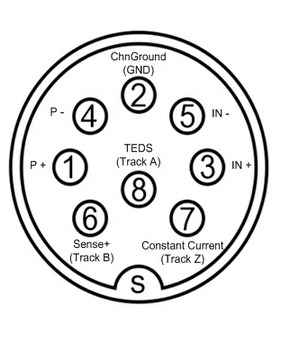

Volt and current inputs

  • Measuring ranges ±250 mV, ±5 V, ±50 V
  • optionally ±200 V as well as ±50 mA
  • 24 bits AD-converter
  • Sampling frequency: up to 4 M sample/s per channel
  • Bandwidth: DC - 1.7 MHz
  • Very low noise: -100 dB to FSR at 1 MHz
  • 16 bits ENOB (effective number of bits)

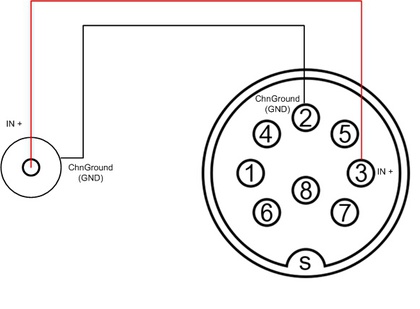

  • Single-ended

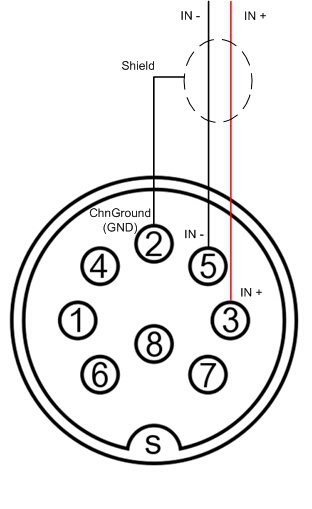

  • Differential
